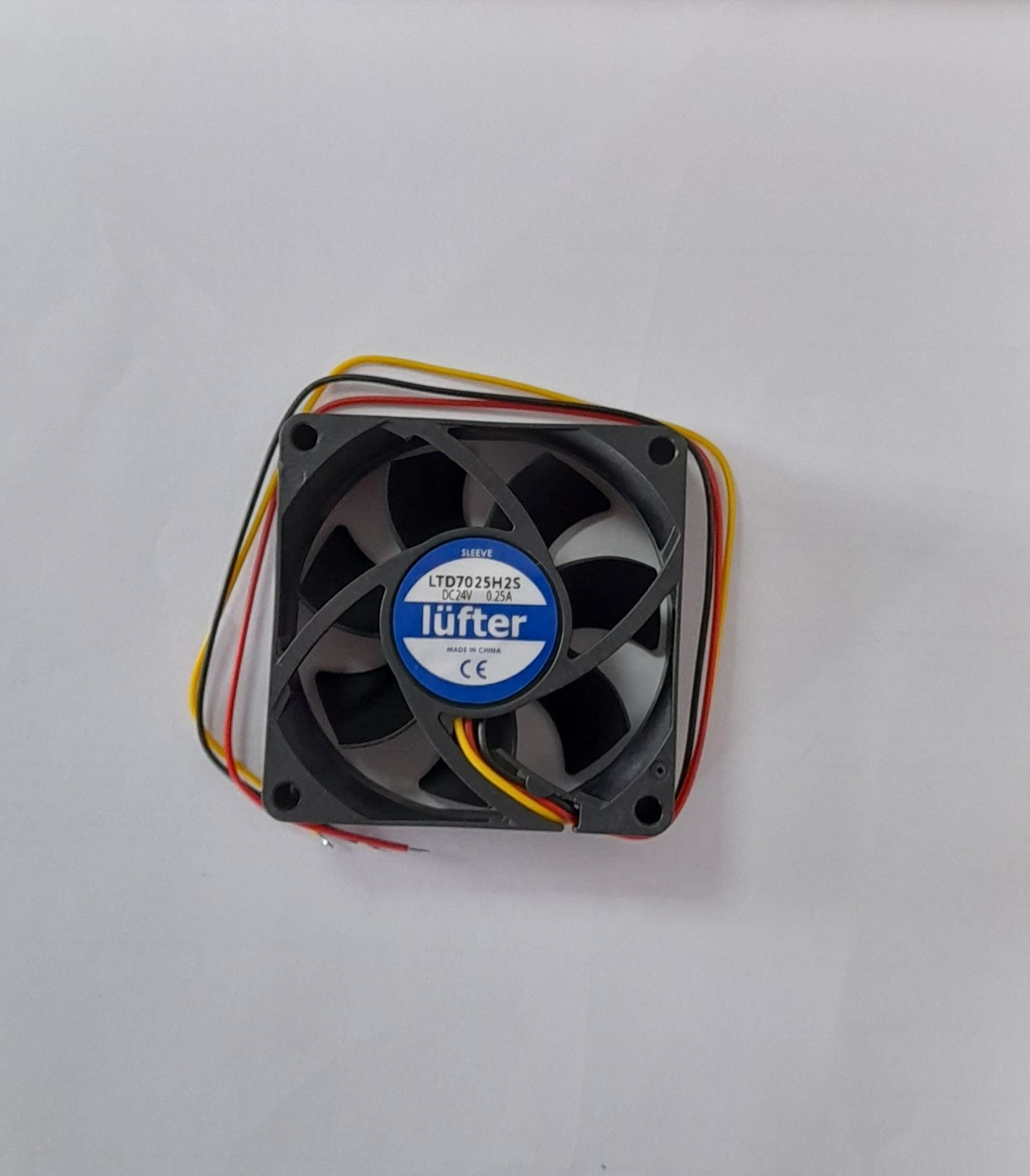

70X70X25MM-24VDC-0.25A
%28
149,26 TL
207,31 TL
149,26 TL den başlayan taksitlerle!!
Fiyat Teklifi Alın
Toplu Alım Talepleriniz İçin Sizin İle İletişime Geçelim
2、总体描述General Description：
|
序号No. |
项目Item |
规格Specification |
单位Unit |
|
2.1 |
尺寸Dimensions |
120*120*32 |
mm |
|
2.2 |
额定电压Rated Voltage |
12 |
VDC |
|
2.3 |
工作电压Operating Voltage |
6~13.5 |
VDC |
|
2.4 |
起动电压Start-up Voltage |
6 |
VDC |
|
2.5 |
输入电流Input Current |
0.67(Max.1.0) |
A |
|
2.6 |
标签电流Label Current |
0.30 |
A |
|
2.7 |
输入功率Input Power |
8.04 (Max. 12) |
W |
|
2.8 |
转速Speed |
300 0±10% |
RPM |
|
2.9 |
最大风量(零静压时)Max. Air Flow(At Zero Static Pressure) |
28.09 |
CFM |
|
2.10 |
最大风压（零风量时）Max. Air Pressure(At Zero Air Flow) |
28.27 |
mmH2O |
|
2.11 |
噪声Acoustical Noise |
54.6 |
dB(A) |
|
2.12 |
预期寿命Life Expectancy |
30000 |
Hours/40℃ |
|
2.13 |
产品重量Net Weight |
200 |
Gram |
|
2.14 |
环保要求 Environmental Compliance |
NO |
/ |
| EBAT | : | 70X70X25 MM |
| VOLT | : | 24 VOLT |
| AC/DC | : | DC |
| AMPER | : | 0.25 |
| HIZ(RPM) | : | 3600 |
| CFM | : | 30/37 |
| SES ŞİDDETİ(dB) | : | 35.2 |
| ÇALIŞMA SICAKLIGI | : | -10°C~ +70°C |
| SERTİFİKA | : | CE, RoHS |
Bu ürüne ilk yorumu siz yapın!
